SETEC charging station 20kW
- Intro

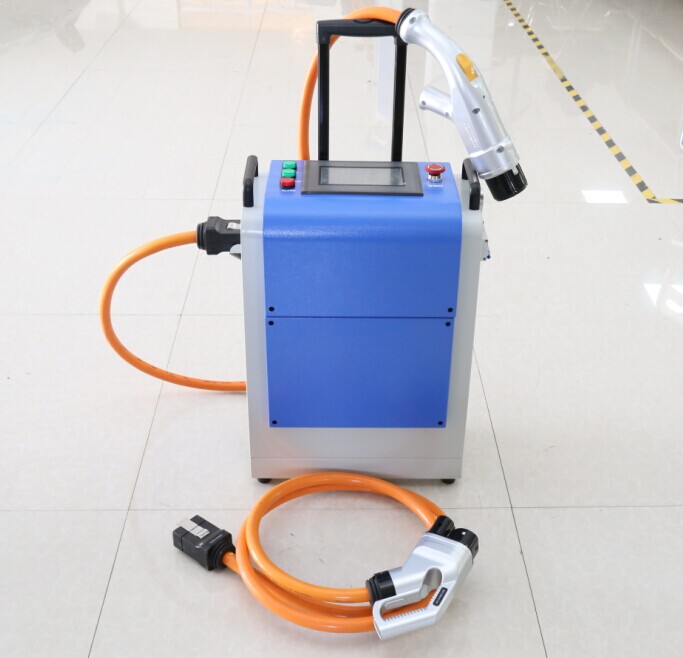

- SETEC charging station 20kW
Smart, easy-to-use charging station for fast charging your electric car.
- CHAdeMO+CCS EV charging station is Combined with CHAdeMO / CCS Combo 2 connectors.
- Portable Fast charger can be moved to anywhere.
- That can be fit for all CCS Electric Cars, such as BMW i3, i8, VW e-Golf, Renault Zoe and other CCS EVs, and CHAdeMO EVs, Like Nissan Leaf.
- SETQCY DC quick charger consists of charging modules, monitor, smart meter, HMI, communication module, charging connector, management and cabinet.
- The Charger combines industry standardization with advanced charging technology to support next-generation electric vehicles.
DC Quick charging station offers Electric Vehicle owners an opportunity to charge their car safely and quickly. A typical electric car with 24kWh battery pack may be charged as quickly as 40 minutes to get up to 80% of its capacity.
- Built-in safety measures
- User friendly interface
- Soft-switching technology, efficiency up to 95%
- Data management and metering option
- Wireless communication remote monitoring and assistance
- Available in several models for different applications
| AC Input | 3phase
|
Line Voltage (VAC） | 380 |
| Voltage Type
|
AC three-phase five-wire | ||
| Frequency（HZ） | 45～55 | ||
| Power Factor
|
0.99 | ||
| Current THD value
|
≤5% | ||
| Input undervoltage protection value（V） | 323±5V | ||
| DC výstup | Nominal output voltage（V） | 450/750 | |
| Output Current（A） | 0~40A | ||
| Regulation accuracy
|
≤0.5% | ||
| Steady current accuracy | ≤1% | ||
| Ripple Peak factor
|
≤0.5% | ||
| The output voltage range（V） | 0～450V | ||
| Short circuit current（A） | ≤30A | ||
| Output Power
|
20kW | ||
| Mechanical indicators
|
Packaging
|
Carton
|
|
| Dimensions (WxDxH)
|
460x660x260 mm | ||
| System Weight
|
40Kg | ||
| Protection grade
|
IP31 | ||
| Operating Temperature
|
-25°C to +50°C | ||
| Protective Funcion
|
Short circuit protection/ Over temperature protection/ Overvoltage/ Undervoltage protection/ Communication failure
|
||
| BMS Communication | CAN2.0 [CHAdeMO]/ [GB/T] | ||
| PLC [SAE Combo] | |||
| Cooling | Forced Ventilation
|
||
| Display | LED: 7 inch Touch Screen | ||
| LCD: 3 Color LED lights - status indicator | |||
| DC Plugs | CHAdeMO / CCS | ||
