METRON charging station Type 1 - CeE 32 A 1ph 6m with case

  • Intro
  • METRON charging station Type 1 - CeE 32 A 1ph 6m with case
  • METRON charging station Type 1 - CeE 32 A 1ph 6m with case

PC 02


PORTABLE EV CHARGER for charging electric vehicles with Type  1 sockets from any standard home or public wall socket (230V power  source) – supports charging with currents up to 32A (up to 7.4 kW  charging power).

  • ALL-IN-A PLUG design – NO bulky box on the cable
  • 100% in-house developed miniature FULL feature vehicle communication module (Micro EVSE 1)
  • Designed for 1-phase Mode 2 EV charging with currents up to 32A
  • ADJUSTABLE CHARGING CURRENT (from 6A to 32A)
  • Optional over-temperature protection with SOFT-OFF capability and automatic reset
  • PREMIUM quality EV cable used (LAPP KABEL – Made in Germany)
  • Choose preferred plug type (wall socket/grid side)
  • Lenght 6m

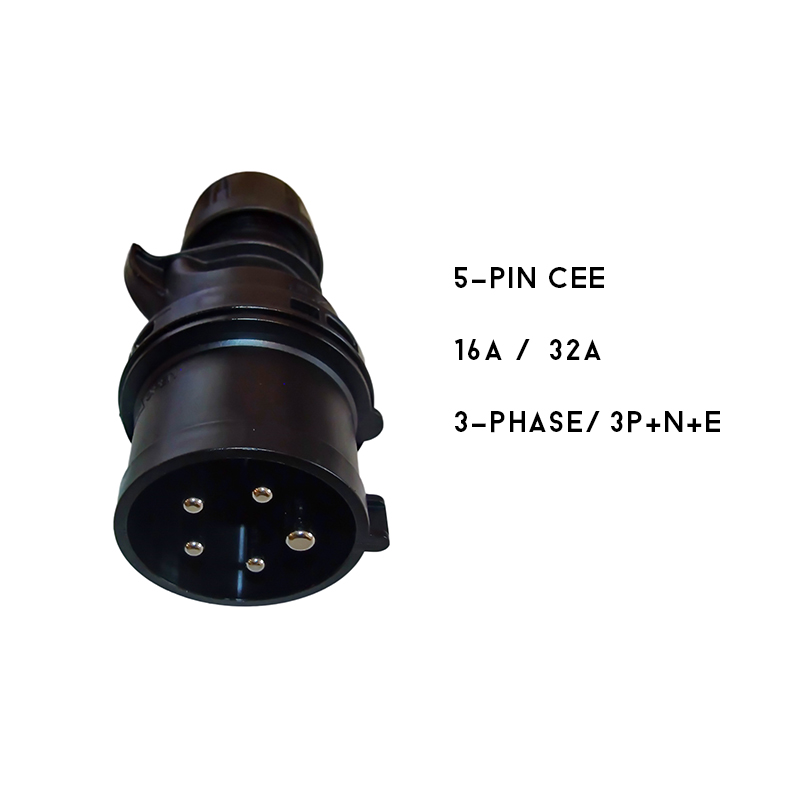

  • Optional RCD protection Type B integrated inside CEE 32A (3-phase/3P+N+E) wall plug – still NO bulky box anywhere!
  • RAINPROOF – covered with special coating
  • Durable Carrier Case included
  • Resistant to microbes, oil, dust and water
  • Special cable design for long service life
  • Flexible at low temperatures (temp. range: -25°C to +80°C)
  • Withstands high mechanical stress, in particular abrasion and sliding demands
  • Plug Type (EV Side): Type 1 (SAE J1772) Female Plug
  • Plug Type (wall socket/grid side): customer defined (CEE 32A (3-phase/3P+N+E)
  • Max. Charging Current: 32A (single phase)
  • Charging current can be adjusted: 6A, 8A, 10A, 13A, 16A, 20A, 25A or 32A
  • Selected charging current stays stored in internal memory even when disconnected from the socket (power)
  • Max. Charging Power: 7.4 kW
  • Rated Voltage: 230V (single phase)
  • Operating voltage range: from 180V to 270V (50/60Hz)
  • Micro EVSE 1 inside EV plug – in-house developed FULL feature vehicle communication module
  • Ultra accurate and temperature independent QUARTZ controlled EV communication frequency
  • User info via Blue LED light
  • Detects/indicates ALL normal charging states (via Blue LED)
  • Detects/indicates ALL faults (via Blue LED)
  • Auto recovers from any possible fault !!!
  • Lenght: 6m
  • UV, oil and flame resistant cable insulation
  • Operating Ambient Air Temperature Range: -30 °C to +40 °C (at full sun exposure)
  • optional over-temperature protection with SOFT-OFF capability with automatic reset
  • Optional CEE 32A (3-phase/3P+N+E) wall plug with integrated RCD protection Type B (AC & DC current sensitive – ensures maximum possible safety)
  • IP Rating: IP54 (rain water resistant)
  • Cable Color: Orange
  • Weight: depends on cable length
  • Packed in durable carrier case
  • 100% compatible with all electric vehicles that have Type 1 sockets (For example: Nissan  Leaf, Kia Soul, Citroen C-zero, Peugeot Ion, Opel Ampera, Renault  Kangoo Z.E. (2011), Renault Fluence Z.E., Ford Focus EV, Mitsubishi  i-MiEV, Fisker Karma, Mitsubishi Outlander PHEV, Toyota Prius Plug-in,  Nissan e-NV200 and many others)
  • IEC 61851 compliant
  • CE approved


NOTE:  the use of this portable EV charger without optional CEE wall plug integrated RCD Type B is allowed exclusively on the installations protected by RCD
